In precision manufacturing, choosing between laser cutting and wire EDM (Electrical Discharge Machining) shapes project success. Both methods remove material accurately but excel in different scenarios. Laser cutting is faster and works on many materials, including non-metals like plastics or wood. However, it struggles with thick metals or heat-sensitive parts. Wire EDM offers extreme precision for conductive metals, especially thick or complex shapes, with minimal heat impact. This guide explores their differences, best uses, and costs to simplify your decision.
What is Laser Cutting?
Overview of the Laser Cutting Process

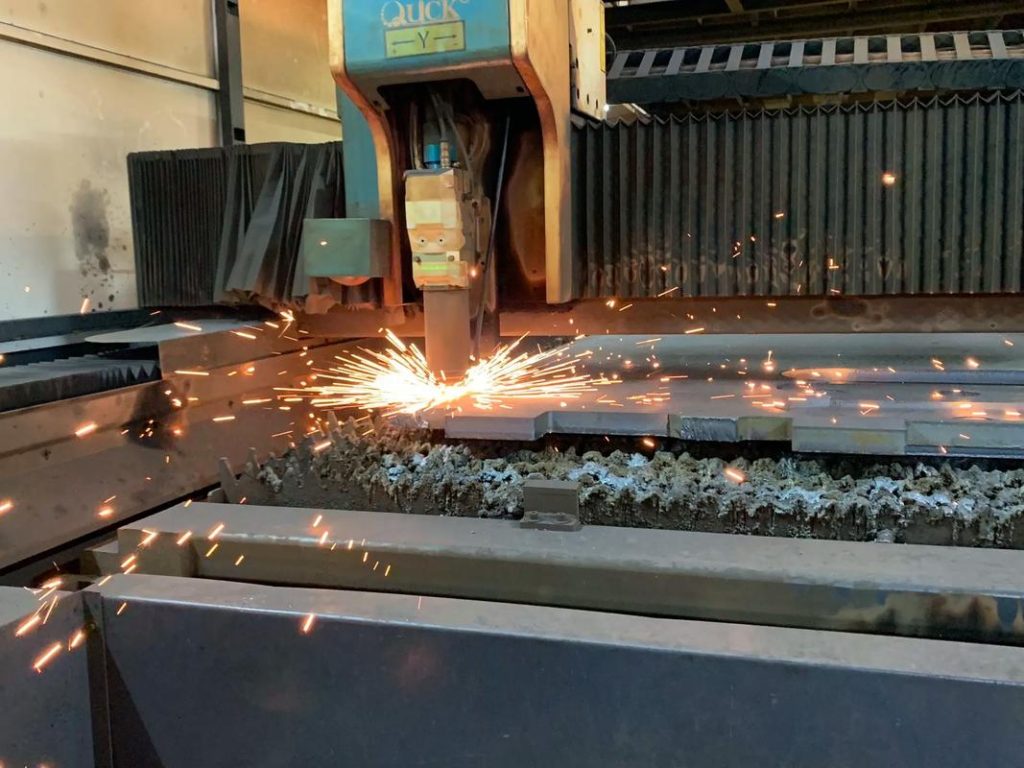

Laser cutting uses a focused, high-power laser beam to melt or vaporize materials. Controlled by computer-aided design (CAD) software, it cuts metals, plastics, wood, and more with high speed and detail. Industries favor it for high-volume jobs needing consistency, like automotive brackets or decorative panels.
Benefits of Laser Cutting
One of the primary benefits of laser cutting is its remarkable speed and precision. Laser cutting machines can achieve cutting speeds of up to 20 meters per minute, making it an incredibly efficient method for high-volume production. Additionally, the laser’s ability to create intricate designs and patterns with micron-level accuracy makes it an ideal choice for applications that require tight tolerances and complex geometries.
Limitations of Laser Cutting
While versatile, laser cutting struggles with thick materials (over 25 mm) and reflective surfaces like copper. It may leave slag (residue) on cuts, requiring post-processing. Heat-sensitive materials, such as certain plastics, can warp under the laser’s intensity.
Materials Best Suited for Laser Cutting
The versatility of laser cutting extends to the wide range of materials it can accommodate, including:
- Metals (such as steel, aluminum, and stainless steel)
- Plastics (including acrylic, polycarbonate, and PVC)
- Wood and wood-based materials (like plywood and MDF)
- Ceramics and glass
- Textiles and fabrics
The ability to precisely cut these diverse materials makes laser cutting an invaluable tool in industries ranging from manufacturing and construction to art and design.
What is Wire EDM?
Overview of Wire EDM Process
Wire Electrical Discharge Machining (EDM) uses a thin, electrically charged wire submerged in dielectric fluid to erode conductive materials. This non-contact method excels in cutting thick, hard metals with extreme accuracy, making it ideal for complex geometries.
Advantages of Wire EDM
One of the primary advantages of the wire EDM process is its ability to achieve tighter tolerances compared to other cutting methods. The non-contact nature of wire EDM allows for extremely precise cuts, with tolerances as tight as ±0.0025 mm (±0.0001 inches). Additionally, wire EDM can effectively cut through thick materials, making it a valuable tool for industries that require the processing of heavy-duty components.
Limitations of Wire EDM
Wire EDM is slower than laser cutting, especially for intricate designs. It only works with conductive materials, limiting its use on plastics or glass. Operational costs rise due to wire replacement and dielectric fluid maintenance.
Types of Materials Suitable for Wire EDM
- Hardened tool steels
- Titanium alloys
- Inconel
- Tungsten carbide
- Ceramics
- Conductive composites
The versatility of wire EDM allows it to process a wide range of conductive materials, from tough metals to advanced ceramics and composites. This makes it a valuable tool for industries such as aerospace, automotive, and medical device manufacturing, where precision and the ability to work with challenging materials are crucial.
Key Differences Between Laser Cutting and Wire EDM
When it comes to precision manufacturing, laser cutting and wire EDM (Electrical Discharge Machining) are two of the most widely used techniques. While both offer distinct advantages, understanding the key differences can help you make an informed decision for your specific project requirements.
Cutting Speed: Which is Faster?
Generally, laser cutting has the edge in terms of cutting speed. The high-energy laser beam can quickly slice through materials, making it an efficient choice for high-volume production. In contrast, wire EDM relies on a slower, more controlled process of eroding the material, which can take longer for intricate cuts or thicker workpieces.
Precision and Tolerances: Comparing the Methods
When it comes to precision and tight tolerances, wire EDM emerges as the superior option. The wire-based process can achieve tighter dimensional accuracy and better surface finishes compared to laser cutting. This makes wire EDM well-suited for applications requiring extremely precise components, such as in the aerospace, medical, and electronics industries.
Material Thickness: Which Method Handles Thick Materials Better?
While laser cutting excels at cutting thin to moderately thick materials, wire EDM shines when it comes to processing thicker workpieces. The wire-based approach can effectively cut through materials up to several inches thick, making it the preferred choice for working with bulkier parts or components.
Applications: Laser Cutting vs Wire EDM
When it comes to manufacturing and fabrication, laser cutting and wire EDM (Electrical Discharge Machining) are two distinct techniques. Understanding the specific use cases for these methods can help you determine the best approach for your project.
Best Applications for Laser Cutting
Laser cutting excels in applications where speed, precision, and intricate detail work are paramount. This technology shines in the following industries:
- Automotive – Laser cutting is commonly used to fabricate complex automotive parts, such as intricate body panels, grilles, and brackets, with exceptional accuracy and efficiency.
- Aerospace – The aerospace industry relies on laser cutting to produce lightweight, high-precision components for aircraft and spacecraft, ensuring safety and performance.
- Electronics – Laser cutting is ideal for cutting printed circuit boards, thin metal components, and other delicate electronic parts with exceptional precision.
- Signage and Art – Laser cutting excels at creating intricate designs, patterns, and text for signage, sculptures, and other artistic applications.
Best Applications for Wire EDM
Wire EDM, on the other hand, is particularly well-suited for applications that require tight tolerances and the ability to work with thick, hard materials. This technology is frequently used in the following industries:
- Tool and Die Making – Wire EDM is invaluable for creating complex molds, dies, and tools with exceptional precision and surface finish, even for hard materials like tool steel and titanium.
- Automotive and Aerospace – In addition to laser cutting, these industries also utilize wire EDM for producing tight-tolerance components, such as engine parts, turbine blades, and other critical hardware.
- Medical Device Manufacturing – The medical industry relies on wire EDM to fabricate intricate, high-precision components for surgical instruments, implants, and other specialized medical devices.
Cost Comparison: Laser Cutting vs Wire EDM
When it comes to manufacturing, cost-effectiveness is a crucial factor. Laser cutting and wire EDM (Electrical Discharge Machining) are two popular metal-cutting techniques, but their costs can vary significantly. Let’s explore the equipment, setup, and operational expenses associated with each method to determine the more cost-effective option.
Equipment and Setup Costs
Laser cutting equipment typically requires a higher initial investment compared to wire EDM. The laser cutting machine itself, along with the necessary safety features and support systems, can be quite expensive. In contrast, wire EDM setups are generally more budget-friendly, with the machine and supporting components costing less.
However, the setup costs for wire EDM can be higher due to the complex programming and precision required to configure the system. Laser cutting, on the other hand, often has a more straightforward setup process, which can be a significant advantage for businesses with limited technical expertise or resources.
Operational Costs: Which Method is More Cost-Effective?
When it comes to ongoing operational costs, the picture becomes more nuanced. Laser cutting is generally more energy-efficient, consuming less power than wire EDM during the cutting process. This can lead to lower utility bills and a more cost-effective manufacturing process in the long run.
Moreover, laser cutting can often achieve faster cutting speeds, which can translate into higher productivity and cost savings. Wire EDM, on the other hand, may require more extensive maintenance and consumable parts, such as wire and dielectric fluid, adding to the operational expenses.
Shixinproto laser cutting and wire cutting services tailored to your needs
At Shixinproto, we understand that every manufacturing project has unique requirements. That’s why we offer specialized laser cutting and wire EDM services designed to meet your specific needs. Our team of experts is dedicated to providing customized solutions that maximize efficiency, precision, and cost-effectiveness for your business.
Whether you’re working with intricate designs, thick materials, or tight tolerances, Shixinproto has the expertise and equipment to deliver exceptional results. Our state-of-the-art laser cutting technology and advanced wire EDM capabilities allow us to tackle a wide range of manufacturing challenges, from rapid prototyping to high-volume production.
Shixinproto’s commitment to innovation and customer satisfaction is at the heart of everything we do. We work closely with our clients to understand their goals, preferences, and constraints, then tailor our services to ensure a perfect fit. With Shixinproto, you can trust that your Shixinproto services, custom laser cutting, and wire EDM solutions will exceed your expectations and drive your business forward.
Conclusion
Choosing between laser cutting and wire EDM depends on material type, thickness, precision needs, and budget. Laser cutting offers speed and versatility for thin materials, while wire EDM delivers unmatched accuracy for thick, hard metals.
