In the world of mechanical engineering and manufacturing, the terms knurl and spline may sound similar, but they serve very different purposes. Both features are commonly found on various components, yet their roles, geometries, and applications differ significantly. While knurls are used to improve grip and aesthetics, splines are essential for transmitting torque between rotating parts. Understanding the difference is vital when designing components that demand either enhanced surface friction or precise mechanical engagement.
This article will provide a comprehensive comparison of knurls and splines, including their purposes, production methods, material applications, types, and how to choose between the two for your mechanical design projects.
What is a Knurl?
A knurl is a patterned surface texture created on the exterior of a component to enhance grip or add a decorative touch. This texture typically consists of a series of ridges or grooves that are either straight, diagonal, or crossed in design. Knurling is most commonly seen on tools, knobs, and cylindrical parts that require manual handling.
The Knurling Process and Its Purpose
The knurling process involves pressing a toothed wheel or roller against the surface of a workpiece, creating a series of parallel or intersecting ridges and grooves. This intricate pattern increases the friction and traction between the object and the user’s hands, enabling a secure and controlled grip. The knurling process is commonly used on tools, machinery, and various industrial components to enhance the user’s ability to handle and manipulate these items effectively.
Materials and Applications of Knurling
Knurling can be applied to metals (like steel, brass, aluminum), plastics, and even some wood materials. The knurling process is commonly used in:
- Hand tools like screwdrivers, pliers, or drill chucks
- Machinery knobs and fasteners
- Consumer products such as bottle caps or camera lenses
- Automotive parts like gear shift knobs and grip pads
In addition to grip enhancement, knurling may serve as a press-fit feature to join parts or act as a visual or tactile identifier.
Types of Knurls: Diamond, Straight, and More
- Diamond Knurl: A pattern of intersecting diagonal ridges, creating a distinctive diamond-like appearance.
- Straight Knurl: Parallel ridges running perpendicular to the axis of the workpiece, providing a linear grip pattern.
- Crossed Knurl: A combination of straight and diagonal ridges, offering a more complex and textured surface.
- Spiral Knurl: Ridges that run in a spiral pattern, providing a unique and visually appealing grip surface.
The choice of knurl type depends on the specific application and the desired level of grip enhancement required. Each variation offers unique advantages, allowing manufacturers and designers to tailor the surface texture to meet the needs of their knurling tools and products.
What is a Spline?
Unlike knurls, splines are mechanical features designed to connect two rotating components and transmit torque. A spline includes a set of grooves or teeth on a shaft that fits precisely into matching grooves in a mating component, like a gear or coupling.
The Spline Process and Its Purpose
The spline manufacturing process involves creating a series of parallel, longitudinal grooves or ridges on the surface of a shaft. These grooves interlock with corresponding teeth or slots on a mating component, such as a hub or gear. This internal connection ensures a secure and precise fit, enabling the components to rotate in unison and transmit torque transmission effectively.
Materials and Applications of Splines
Splines are usually made from hardened metals such as alloy steel, stainless steel, or sometimes aluminum—materials capable of withstanding repeated torque loading.
Typical applications include:
- Automotive drive shafts
- Industrial gear systems
- Aerospace power transmissions
- Robotics and automated machinery
- Heavy-duty construction equipment
Their ability to transfer power smoothly and reliably makes them indispensable in dynamic mechanical systems.
Types of Splines: Parallel, Radial, and More
- Parallel Splines: Feature straight, parallel grooves. These are standard in automotive powertrains and machinery requiring consistent torque.
- Radial Splines: Grooves radiate from the center, offering a tight radial fit. Found in gearboxes and rotating couplings.
- Involute Splines: Have curved tooth profiles that allow gradual engagement and stress distribution—used in high-speed, high-load systems.
Each type supports specific torque levels and alignment tolerances, making spline selection a critical step in the design process.

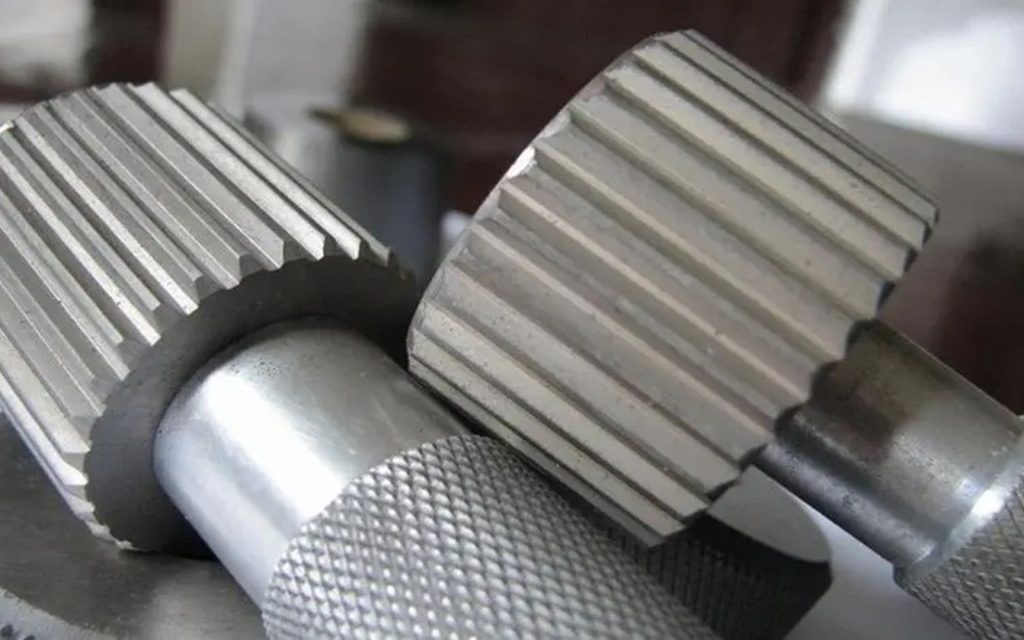

Key Differences Between Knurls and Splines
While knurls and splines may appear similar at first glance, they serve distinct purposes in mechanical design and engineering applications.
Functionality: Enhancing Grip vs. Transmitting Torque
The primary function of knurls is to enhance the grip of a component, making it easier to hold, turn, or manipulate. The textured surface of a knurl provides increased friction, which is particularly useful in applications where a secure grip is essential, such as tools, handles, or knobs.
In contrast, splines are designed to transmit torque or rotational force between two components. The interlocking teeth of a spline allow for a secure connection, enabling the efficient transfer of power and movement between mating parts, such as in gear assemblies or power transmission systems.
Geometry: Surface Texture vs. Internal Connection
Knurls are characterized by their distinctive surface patterns, which can be diamond-shaped, straight, or a combination of both. These patterns create a textured surface that enhances grip and friction. Splines, on the other hand, feature an internal connection that is often parallel, radial, or a combination of multiple spline types.
The geometry of knurls is focused on modifying the external surface, while splines are designed to create a secure internal connection between components, ensuring efficient power transmission.
Applications: Knurls for Grip, Splines for Mechanisms
Knurls are commonly used in products where a secure grip is essential, such as hand tools, automotive components, and consumer electronics. Splines, on the other hand, are widely used in mechanisms that require the transmission of torque, such as gear boxes, power takeoff units, and shaft-to-hub connections.
Choosing Between Knurls and Splines for Your Project
When it comes to mechanical engineering projects, the choice between knurls and splines often depends on the specific requirements and design considerations at hand. Understanding the unique benefits and applications of these two features can help you make an informed decision that aligns with your project’s needs.
When to Use Knurls
Knurls are an excellent choice when enhancing grip and preventing slippage is a crucial factor. Their textured surface provides a secure hold, making them ideal for applications where manual manipulation or increased traction is essential. This could include handles, knobs, or any other components that require a firm grip. Knurls are also commonly used in manufacturing processes, such as turning and milling, where they help improve the operator’s control over the workpiece.
When to Use Splines
Splines, on the other hand, excel at transmitting torque and power between rotating components. They are particularly well-suited for applications involving mechanisms, such as gears, clutches, and couplings, where the precise transfer of rotational force is critical. Splines provide a secure connection, allowing for the efficient transmission of power while maintaining alignment between the mating parts. If your project requires the reliable transfer of torque, splines may be the optimal choice.
