CNC (Computer Numerical Control) machining is a transformative manufacturing process where pre-programmed computer software dictates the movement of tools and machinery. This automation replaces manual operation, enabling consistent, precise, and repeatable production of complex parts. Unlike traditional methods, CNC machines perform tasks like milling, turning, drilling, and grinding with exceptional accuracy, making them indispensable in modern industry. This cnc guide explores CNC technology’s mechanics, applications, and advantages—equipping beginners and experts alike with actionable insights for leveraging its potential in business innovation.
What is CNC Machining?
CNC (Computer Numerical Control) machining is a game-changer in making parts and components. It uses computer-controlled machines to shape and work with materials like metals and plastics. This process makes the desired products with great precision.
Introduction to CNC Machines and Their Role in Manufacturing
CNC machining stands as a cornerstone of automated manufacturing, using digital instructions to control cutting tools with minimal human intervention. The process begins with a CAD model, converted into machine-readable G-code via CAM software. This code guides equipment to sculpt raw materials—metals, plastics, or composites—into finished components. Automation reduces human error while boosting consistency. Programming translates designs into precise toolpaths. Accuracy ensures tolerances within micrometers. Material removal shapes workpieces subtractively. Versatility supports mills, lathes, routers, and laser cutters.
As a subtractive process, CNC machining carves away material to achieve desired geometries, ideal for prototyping and mass production. Its reliance on computer control eliminates variability, delivering identical parts batch after batch—critical for aerospace, medical devices, and automotive sectors where precision is non-negotiable.
How CNC Machines Work: From Design to Finished Part
The CNC workflow unfolds in five structured phases:
- CAD Design: Engineers draft a 3D digital model using software like SolidWorks or AutoCAD, defining every dimension and curvature.
- CAM Programming: Specialists convert the CAD file into G-code, configuring toolpaths, speeds, and feed rates. Software such as Mastercam or Fusion 360 simulates cuts to prevent errors.
- Machine Setup: Operators mount the workpiece (e.g., aluminum billet) and install tools (end mills, drills), calibrating coordinates for zero positioning.
- Execution: The machine follows G-code instructions, autonomously cutting, drilling, or turning the material. Sensors monitor temperature and vibration to maintain quality.
- Post-Processing: Finished parts undergo deburring, polishing, anodizing, or quality checks via CMM (Coordinate Measuring Machines).
A computer system interprets the G-code instructions to control the machine’s movements. Tools like spindles, drills, and cutters are automated to perform precise operations. CNC machines can move in multiple directions (axes), typically X, Y, and Z, allowing for complex three-dimensional parts to be manufactured. This seamless integration of design and automation slashes production timelines while ensuring millimeter-perfect replication—whether crafting a single prototype or 10,000 engine components.
Types of CNC Machines and Their Applications
Computer numerical control (CNC) machining offers a wide range of machines for different needs. CNC milling machines, CNC lathes, and CNC routers each have unique abilities. They can be tailored to fit specific industry needs.

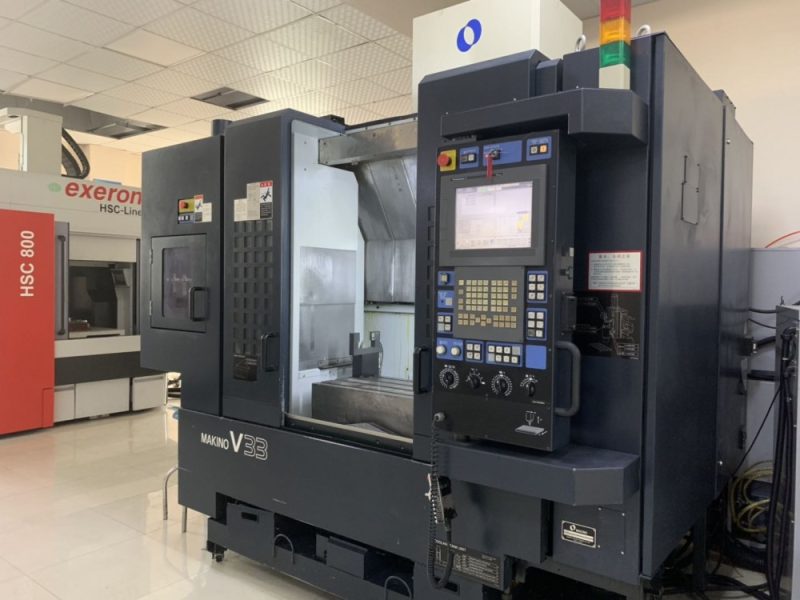

CNC Milling Machines: Versatility and Precision
CNC milling machines are known for their versatility and precision. They can work with many materials and make detailed parts accurately. These machines are great for complex shapes and are used in aerospace, automotive, and medical fields.
CNC Lathes: Ideal for Turning Operations
CNC lathes are perfect for turning operations. They rotate the workpiece and remove material with a cutting tool. This makes them ideal for creating cylindrical parts like shafts and bolts. They are used in automotive, aerospace, and general manufacturing.
CNC Routers: Cutting, Drilling, and More
CNC routers are great for cutting, drilling, and carving various materials. They use a spinning router bit to remove material. This makes them popular in woodworking, signage, and prototyping. They can handle complex 3D shapes quickly and efficiently.
Choosing the right machine is key for the best results. Knowing about CNC milling, CNC lathes, and CNC routers helps in making informed decisions for CNC machine guide, CNC milling, CNC lathe, and CNC router needs.
Key Benefits of CNC Machining for Businesses
CNC machining has revolutionized modern manufacturing by offering numerous advantages that enhance how businesses produce parts. From improved precision to significant cost savings, the benefits of CNC machining are substantial.
Precision and Repeatability in Manufacturing
CNC machining stands out for its unmatched precision and ability to repeat results. CNC machine guide tech makes parts with incredible accuracy. This is key in precision manufacturing, where small differences can matter a lot.
Also, CNC machines follow exact plans, making sure every part is the same. This consistency is great for businesses wanting to improve their production and keep quality high.
Time and Cost Savings with Automated CNC Machines
Adding CNC tech to manufacturing brings big cost-effective production benefits. CNC machines work on their own, cutting down on manual work and costs. This makes production faster and less prone to mistakes, saving money and time.
Also, CNC’s precision means less waste, saving businesses money. This makes CNC machining a top choice for precision manufacturing and cost-effective production.
| Benefit | Description |
|---|---|
| Precision | CNC machines can create parts with exceptional accuracy, ensuring consistent quality and meeting the strictest specifications. |
| Repeatability | CNC technology allows for the production of identical parts, streamlining the manufacturing process and maintaining high standards. |
| Time Savings | Automated CNC machines can significantly reduce production time, increasing efficiency and responsiveness. |
| Cost Savings | CNC machining minimizes material waste and labor costs, making it a more cost-effective production solution. |
Materials Used in CNC Machining
In CNC machining, picking the right materials is key for quality and cost. CNC tech lets makers work with many materials, from metals to plastics and composites.
Common Materials Machined with CNC Technology
CNC machines can shape and cut many materials well. These include:
- Metals: Aluminum, stainless steel, titanium, brass, and copper are common in CNC machining.
- Plastics: Acrylic, polycarbonate, nylon, and polyethylene are favorites for CNC machining.
- Composites: Carbon fiber and fiberglass are used for strong, light parts in CNC machining.
Selecting the Right Material for Your CNC Project
Choosing the right material for your CNC project is important. You need to think about the material’s performance, cost, and how easy it is to machine. Making the right choice can help your CNC project succeed.
| Material | Durability | Machinability | Cost |
|---|---|---|---|
| Aluminum | High | Excellent | Moderate |
| Stainless Steel | Exceptional | Good | High |
| Nylon | Moderate | Excellent | Low |
| Carbon Fiber | Extremely High | Challenging | High |
Think about what your CNC project needs and compare different materials. This way, you can pick the best one for your goals.
How to Set Up and Program CNC Machines
Understanding cnc machine basic knowledge is essential for effective operation. It helps them improve their production. Understanding basic setup and the software for g-code and cam software programming is essential.
Basic CNC Programming and Setup Procedures
Setting up a cnc machine for work involves several steps. First, you need to set up the machine with the right tools and safety gear. This is the base for good cnc programming.
Next, you create a detailed program using g-code. This language tells the machine how to move and what to do. Using cam software makes this easier, linking design and production smoothly.
Software Tools and Codes Used for CNC Programming
There are many software tools for CNC programming. Cam software like Mastercam and Fusion 360 helps turn designs into g-code programs. These tools make programming faster and better, helping manufacturers.
Knowing g-code is also important. It’s a special language that tells the CNC machine what to do. Learning g-code helps you understand CNC technology better.
Why Choose Shixinproto for Your CNC Machining Needs
At Shixinproto, we’re proud to be a top choice for CNC machine guide and custom machining solutions. We serve businesses in many industries. Our advanced equipment and skilled team ensure top-notch CNC services for our clients.
Our CNC machining expertise is unmatched. We’ve worked with many materials and projects, big and small. Our focus on quality shows in every step, from design to delivery.
Choosing Shixinproto means your CNC machining is in expert hands. We aim to give you the best experience, with personalized support and solutions. Whether it’s one part or many, trust us for outstanding results.
Conclusion
CNC machining is a vital technology in modern manufacturing, offering precision, efficiency, and versatility. It enables the production of complex parts with high accuracy and repeatability, making it indispensable across various industries. By understanding the basics of CNC machines and their applications, businesses can leverage this technology to improve their operations and achieve better results. For reliable and professional CNC machining services, consider Shixinproto. We have the expertise and resources to meet your needs and help you succeed. Visit us to learn more about how we can assist with your projects.
FAQ
Can CNC machines work with ceramics?
Yes, using diamond-coated tools and reduced speeds to prevent cracking.
How does CNC reduce environmental impact?
Precise cuts lower material waste, while coolant-recycling systems minimize chemical use.
What file formats are used for CNC programming?
Common formats include STEP, IGES, and STL for 3D models; G-code for machine instructions.
Why choose Shixinproto over competitors?
We offer DFM (Design for Manufacturability) analysis, reducing production costs by 20% through optimized designs.
